Bronze Boat Fittings



Based on years spent building and restoring traditional-style wooden boats, we’ve devloped a range of fittings both practical and classic. These fittings are in keeping with the history of traditional fishing boats, and are extremely long-lasting.

Toilet Roll Holder


Bronze toilet roll holder to be used aboard you boat or at home.



Bulkhead Light


Bronze marine bulkhead light for the cabin of your boat or home. Includes frosted lens, diffused light, and LED globe in tungsten and a push button switch.
Diameter: 118mm
Lens: 89mm




Bronze Handle


 A general purpose bronze cabinet handle typically used throughout our boat range, but also a popular item for use at home.




Coat Hook


Traditional screw mount bronze coat hook.



Cleat


This bronze deck cleat comes in five sizes. The large and x-large are to be used as a deck cleat in a marina context.



Square Hinge


Square bronze hinge to be typically used on a table (flush, 180 degree bend).
L.O.A: 79mm








Round Hinge


Round bronze Hinge to typically be used on a hatch (flush, 180 degree bend).
L.O.A: 129mm
Width: 37mm






Hasp & Staple


Traditionally designed bronze hasp and staple for use in your boat's cabin.
L.O.A: 102mm
Height: 27mm
Width: 34mm




Transom Hinge


Bronze hinge typically used for transom board, swim platform or scuttle doors. Generally two transom board hinges are needed per platform. *The hinges are not reversable, please select carefully.



Handrail Fitting [Middle]


Middle bronze fitting for a handrail, ideal for towel racks and tops of cabins on boats. Can be fitted with copper or timber tubing.

I.D: 32mm

Handrail Fitting [End]


End bronze fitting for a handrail, ideal for towel racks and tops of cabins on boats. Can be fitted with copper or timber tubing.
I.D: 32mm



Hatch Latch


Bronze Hatch Latch, holdown.
O.D: 79mm
Height: 82mm
Hatch Length: 91mm




Ring Pull [Hatch Pull]


Bronze ring pull to sit completly flush on deck or floorboards.
Upper O.D: 62mm
Lower O.D: 38mm
I.D: 37mm
Depth: 11mm




Drink Holder


Handmade bronze drink holder typically used on our boats.


Fishing Rod Holder


Bronze Fishing Rod Holder is flush, deck-mounted.
L.O.A: 276mm
I.D: 49mm
O.D: 51mm
Base: O.D: 82mm




Deck Plate


Bronze deck plate - can also be used as a drain bung, sits completly flush with deck.




Rowlocks


Bronze rowlocks for holding oars in place in small dinghys. Two sizes available, please select carefully. *Sold in pairs.

Small: 12mm
Large: 16mm



Rowlock Plates


Bronze rowlock plates suitable for a dinghy or a small sailing boat. Two sizes available, please select carefully. *Sold in pairs.
Small I.D: 12mm

Large I.D: 15mm


Flagstaff Socket Transom Mount


Angled socket for Flagstaff, comes in two sizes.
Small: 31mm
Large: 38mm




Navigational Lights [Small]


Bronze navigation light cover with LED port/starboard lights. Comes in two sizes, please choose carefully.
Small LOA: 153mm
Large LOA: 178mm




Sorrento


Sorrento in bronze letters.


Registered Fishing Boat [RFB]


RFB for Couta Boat.




Lacco Scroll


The lacco scroll is permitted for use on known Lacco-built boats. The scroll is akin to a signature and SHOULD NOT be used on boats not known to be Lacco-built.
Width: 52mm
Height: 29mm



Bronze Cover Buttons


Sold individually.





Boat Hook


Bronze boat hook, end only (no handle).
*We also have available floating boat hooks with teak handles. ie. floats with handle facing upward when dropped overboard.  [Size: 2m, 2.6m, 2.9m]
L.O.A: 225mm
OD: 45mm
I.D: 41mm - 30mm
Hook Length: 52mm




Eye Bolt


Bronze eye bolt, comes in five sizes, please choose carefully.



Belaying Pin


Belaying pin comes in four sizes.
X-Small LOA: 152mm
Small LOA: 203mm
Medium LOA: 254mm
Large: 370mm



Spiderband Belaying Pin


Suits spiderbands.
L.O.A: 145mm



Boom Pin


Suits boom gooseneck
L.O.A: 180mm



Bobstay Band


Bobstay band, suits 88mm - 114mm stem. The bobstay band has an old type or a new type, please choose carefully.




Chain Plate [X-Small]


Bronze chain plate comes in five different sizes, please choose carefully.
X-Small: suits a dinghy

Small: suits 18’ boat
Medium: suits 20-22’ boat
Large: Suits 20-24’ boat
X-Large: suits 26’ couta boat



Chain Plate Bolt - Stock


A bronze rod for making chain plate bolts.
25mm - 304mm
=


Chain Plate Bolt


Head
diameter: 25mm

thickness: 5mm
Bolt
diameter: 12mm

length: 25mm




Thimble


Bronze thimble comes in two different sizes.
Small LOA: 65mm
Large LOA: 76mm



Sheave


Sheave - for a centreplate or bowsprit on a couta boat. Two different sizes, please choose carefully.
Small length: 76mm
Large length: 95mm



Block Sheave


Length: 72mm
Diameter: 20mm
Hole: 12mm



Gudgeon Pin


Standard size:
L.O.A: 170mm
Diameter: 19mm

Large:
L.O.A: 152mm
Diameter: 20mm

X-Large:
L.O.A: 152mm
Diameter: 25mm




Cat Whisker Plate


Small LOA: 145mm

Medium LOA: 190mm (suits couta boat)
Large LOA: 242mm (suits 26’ couta boat)


Pad Eye for Mainsheet Traveler Uphaul


Couta boat mainsheet traveller up-haul.
L.O.A: 117mm





Mast Cap


X-Small: dinghy mast cap
Top I.D: 38mm
Bottom O.D: 44mm

Small:  jibboom
Top I.D: 69mm
Bottom O.D: 62mm


Medium: 4 lugs
Top I.D: 114mm
Bottom O.D: 133mm

Large: 6 lugs
Top I.D: 114mm
Bottom O.D:  113mm


X-Large: 26’ couta boat
Top I.D: 68mm
Bottom O.D: 102mm



Jibboom cap


Jibboom cap - tapered. For a 26’ couta boat.

Top I.D: 55mm
Bottom O.D: 67mm



Roller


Suits wooden bow chock.

Length: 76mm
Diameter: 82mm

Length: 47mm
Diameter: 63mm

Length: 63mm
Diameter: 63mm

Length: 57mm
Diameter: 44mm

Suits single deck track
Length: 19mm
Diameter: 38mm




Rudder Gudgeon


X-Small: for a dinghey
L.O.A: 133mm

Small LOA: 172mm
I.D: 34mm


Medium LOA: 280mm
I.D: 44mm


Large LOA: 370mm
I.D: 32mm




Rudder D-Bolt


Small: for a dinghey
L.O.A: 165mm
Diameter: 9mm


Large: for a couta boatL.O.A: 266mm
Diameter: 18mm





Tiller Arm


Two sizes.



Deck Track


Lengths of 1000mm per piece Measurements may vary slightly, as such tracks may need some machining for perfect headsail car fit.



Double Sheave Car Assembly


3 parts.
- Headsail car base
- Sheave headsail car
-Sheave pattern


Lower Rudder Base & Pintle


Lower O.D: 61mm
O.D: 21mm
Width: 89mm
Height: 88mm
L.O.A: 142mm




Gooseneck Fitting for Tabernacle Wide


Facilitates mast lowering with boom in position.
L.O.A: 95mm
W.O.A: 200mm



Cutless Bearing Holder


Small: suits 25mm - 31mm shaft
Large: suits 38mm - 44mm shaft.




Stanchion


For wire fence around a boat. Can be made to order - price will vary.
L.O.A:  620mm



Jibboom Irons


X-Small: for a dinghy
I.D: 47mm

Small I.D: 95mm

Medium I.D: 101mm


Large I.D: 111mm



Spiderband


Four sizes available, includes belaying pins. X-Small: 101mm
Small: 114mm
Medium: 127mm Large: 145mm



Stem Fitting


X-Small: for use with a 63mm stem
Small: for use with a 76mm stem
Medium: for use with a 95mm stem
Large: for use with a 101mm stem



Anchor Bow Sprit


Length: 540mm
I.D 65mm




Table Base


I.D: 60mm
O.D: 180mm
Height: 50mm




Folding Table


Woodenboat Shop designed folding table.

Small: suitable for a Nepean
1220mmx700mm

Large: suitable for a Cheviot or larger
1600mmx700mm


Mark

Caulking Tools



Caulking tools are a must have for any traditional shipwright or boat builder/repairer.

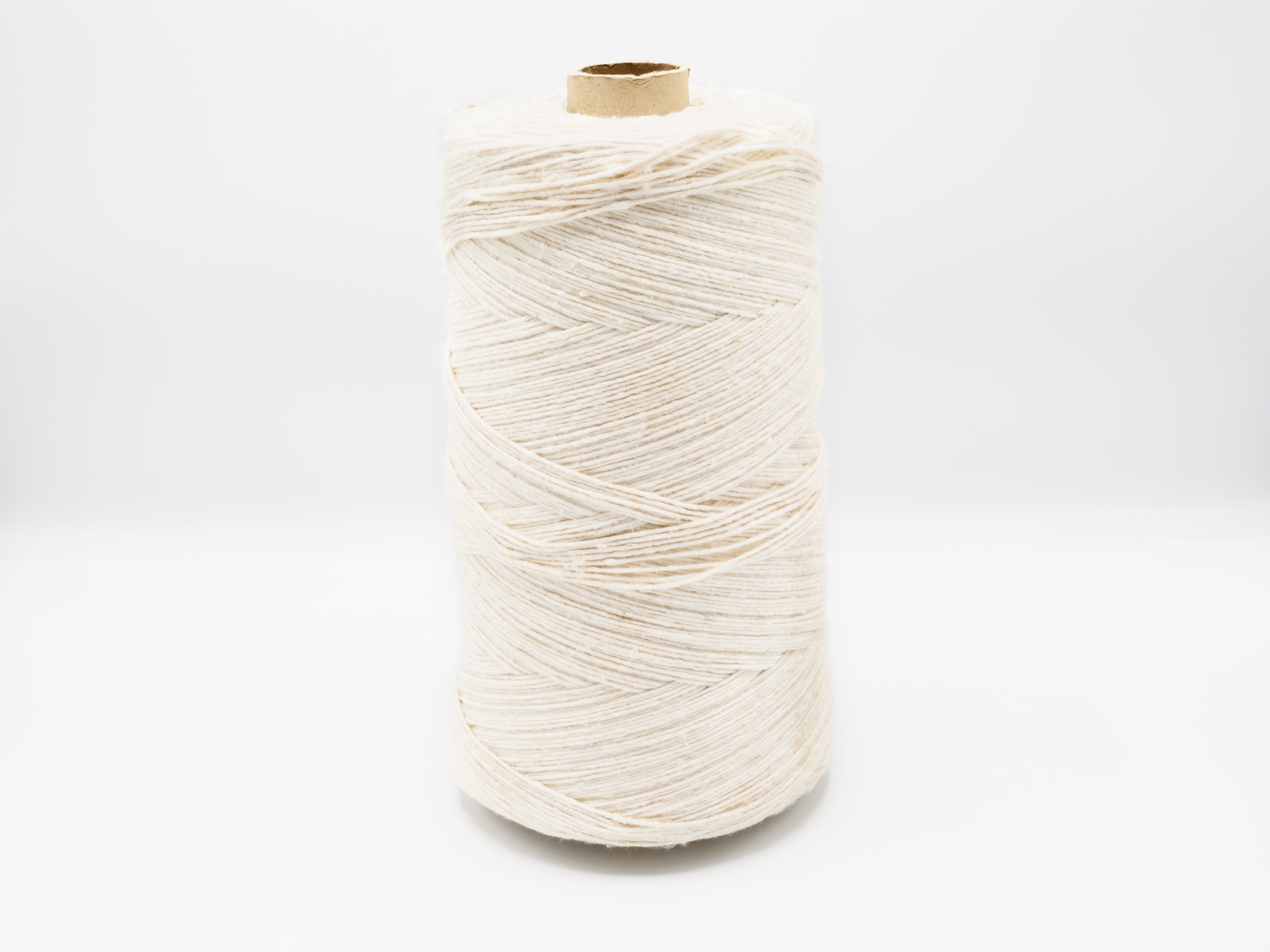

Caulking Cotton


Caulking Cotton roll is an 8 Strand, length approximately 360m.

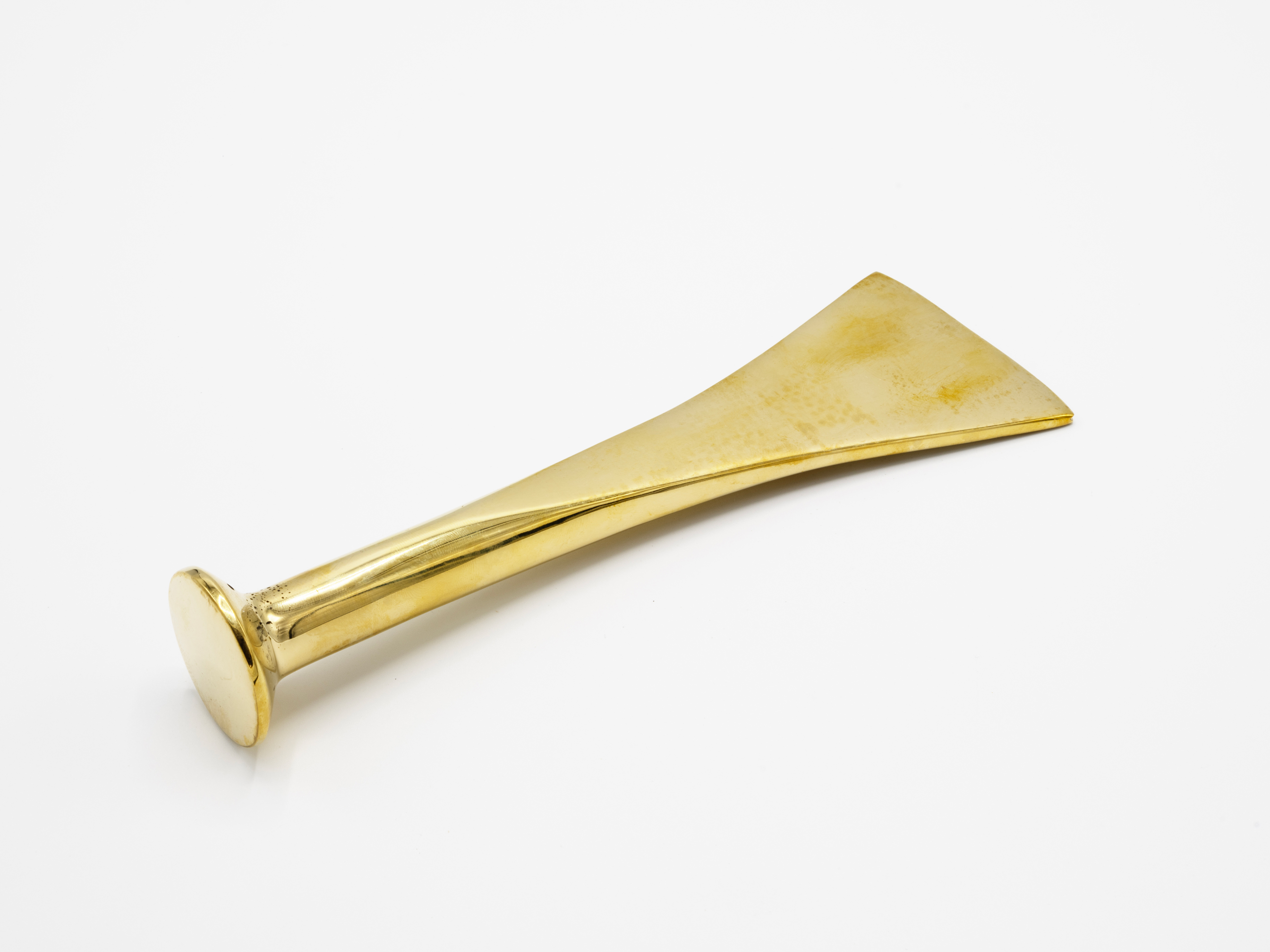

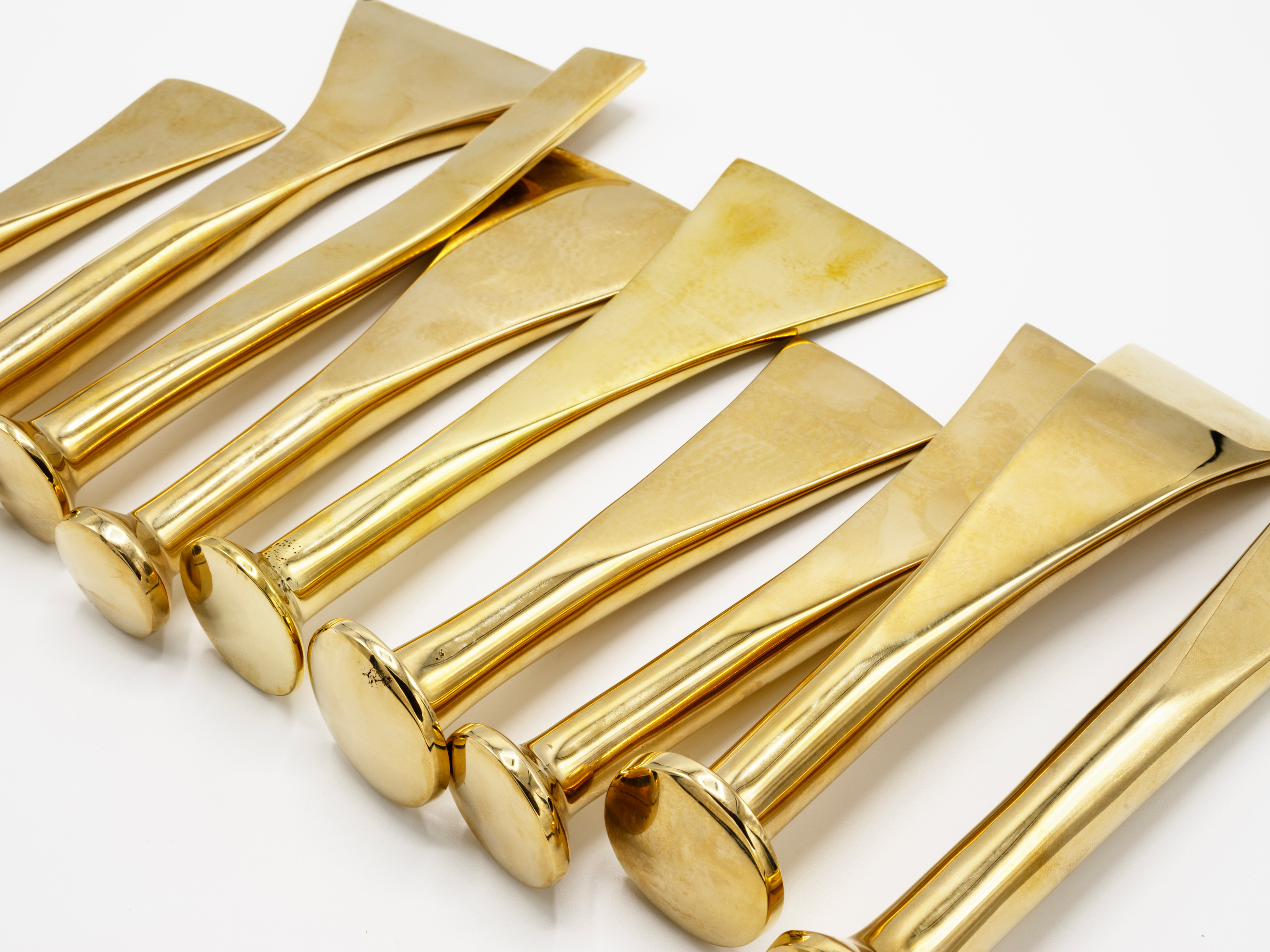

Bronze Caulking Iron Set


The bronze caulking iron set includes our whole range of bronze caulking irons [CK-1, 2, 4, 5, 7, 8, 9, 10, 11] *includes canvas pouch.




Bronze Caulking Iron #1

Caulking Iron #1 is a bronze making iron with a sharp edge, 76mm long.

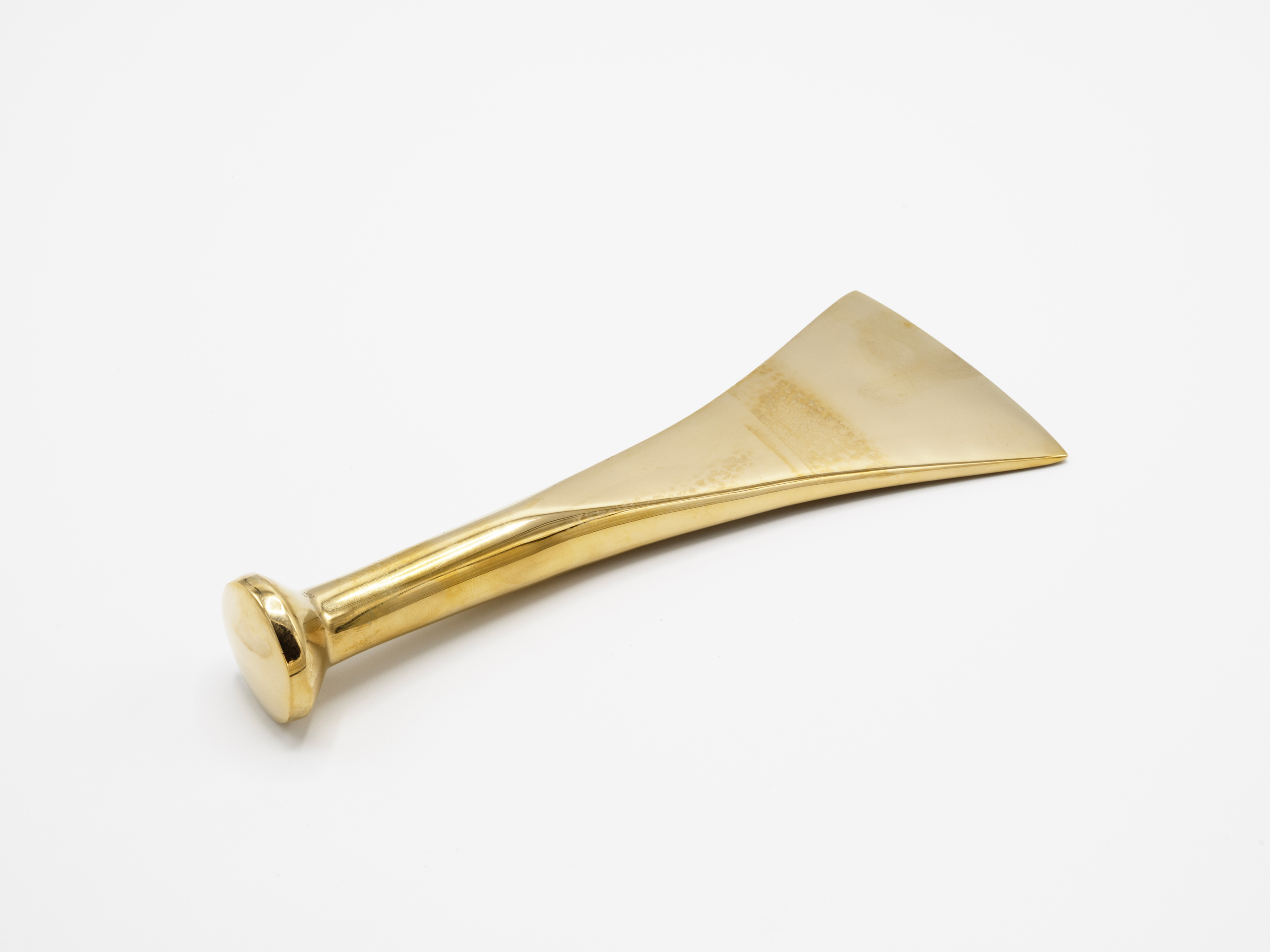

Bronze Caulking Iron #2


Caulking Iron #2 is a bronze making iron with a sharp edge, 66mm long.



Bronze Caulking Iron #3


Caulking Iron #3 is a bronze crease iron with a single crease, 55mm long.




Bronze Caulking Iron #4


Caulking Iron #4 is a small bronze cleat with rounded ends, 65mm long.

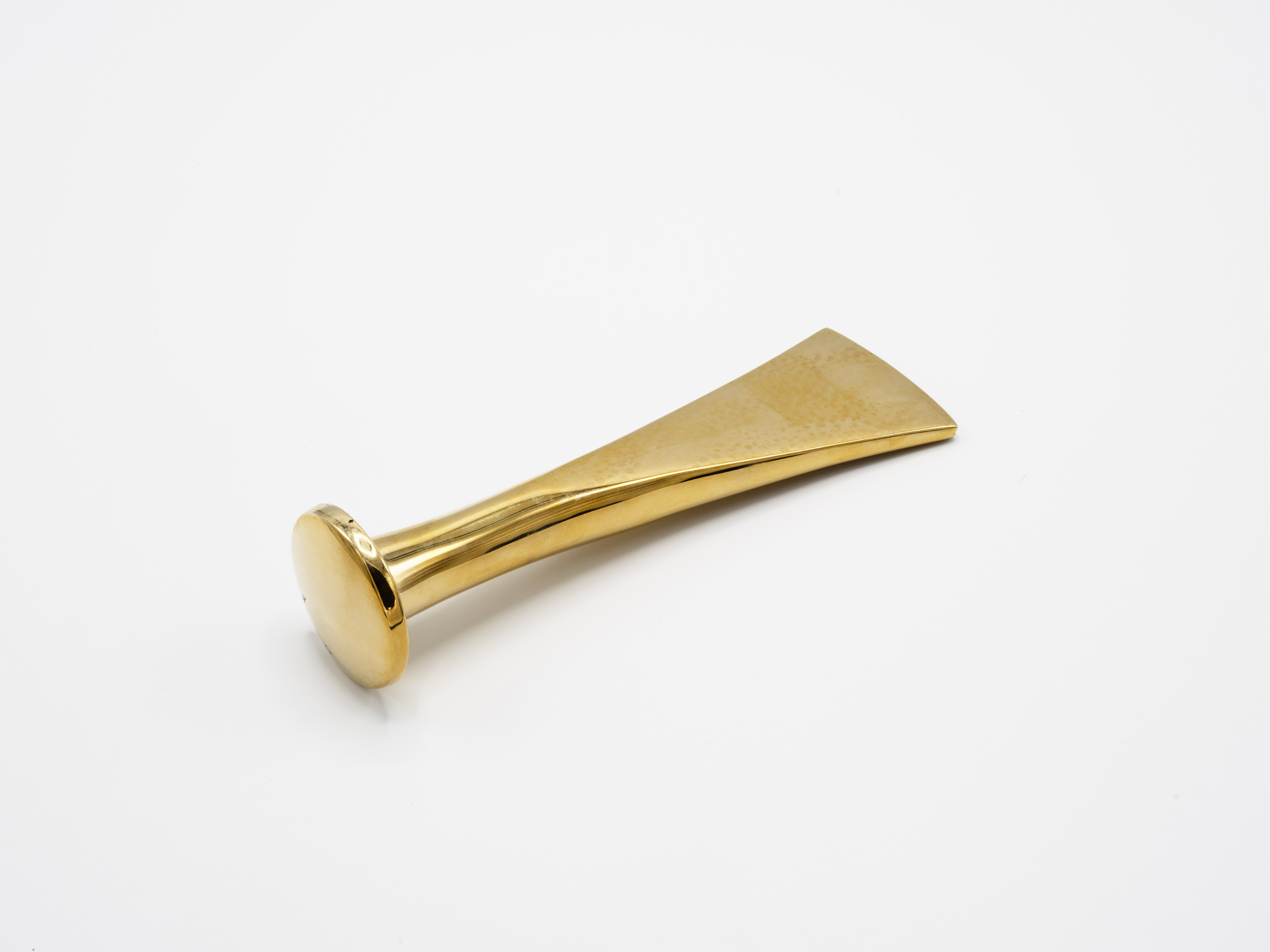

Bronze Caulking Iron #7


Caulking Iron #7 is a bronze crease iron with a single crease 4mm edge, 42mm long.

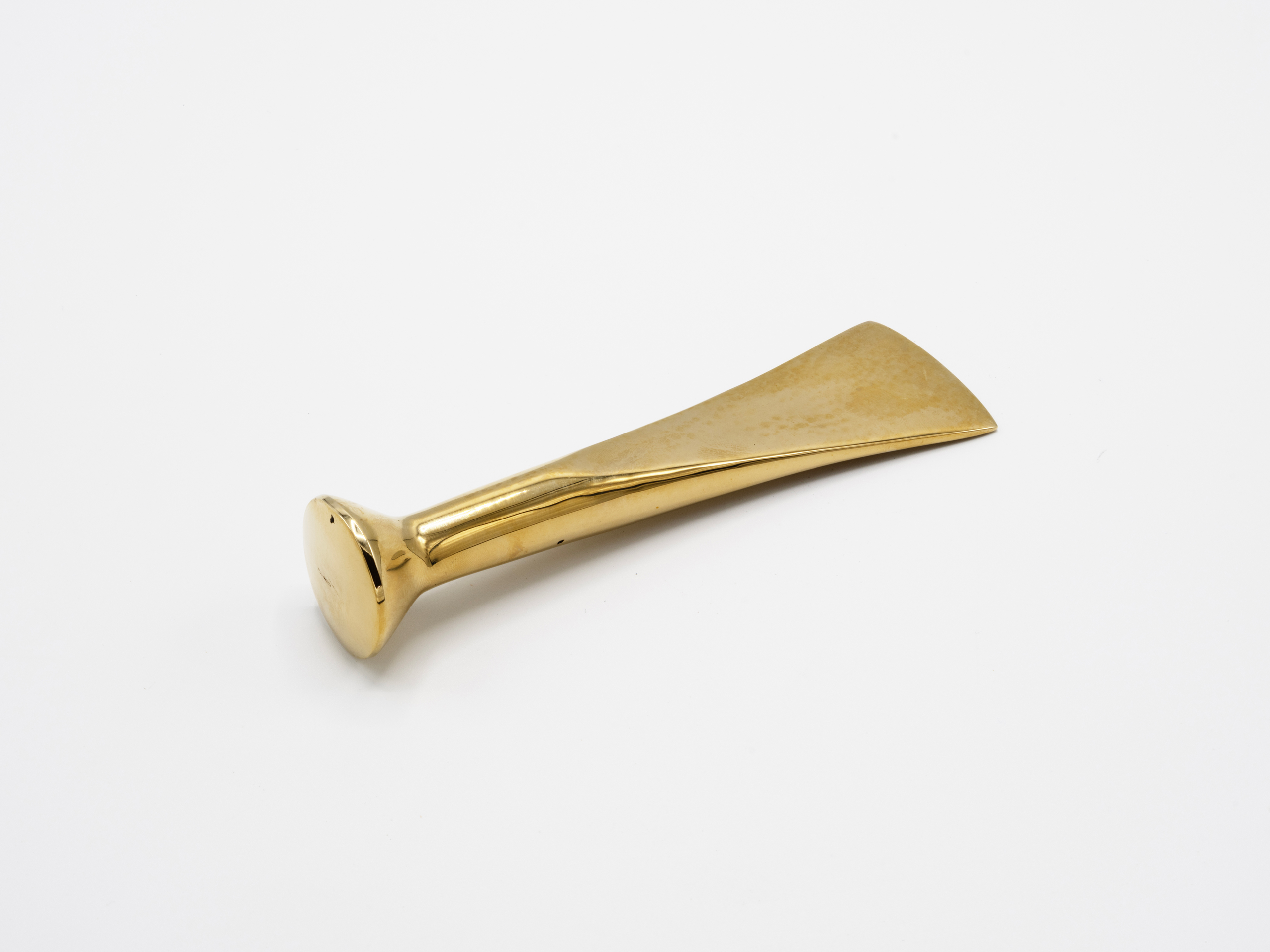

Bronze Caulking Iron #8


Caulking Iron #8 is a bronze making iron with a sharp edge, 36mm long.



Bronze Caulking Iron #9


Caulking Iron #9 is a bronze bent crease iron with a single crease, 47mm long.

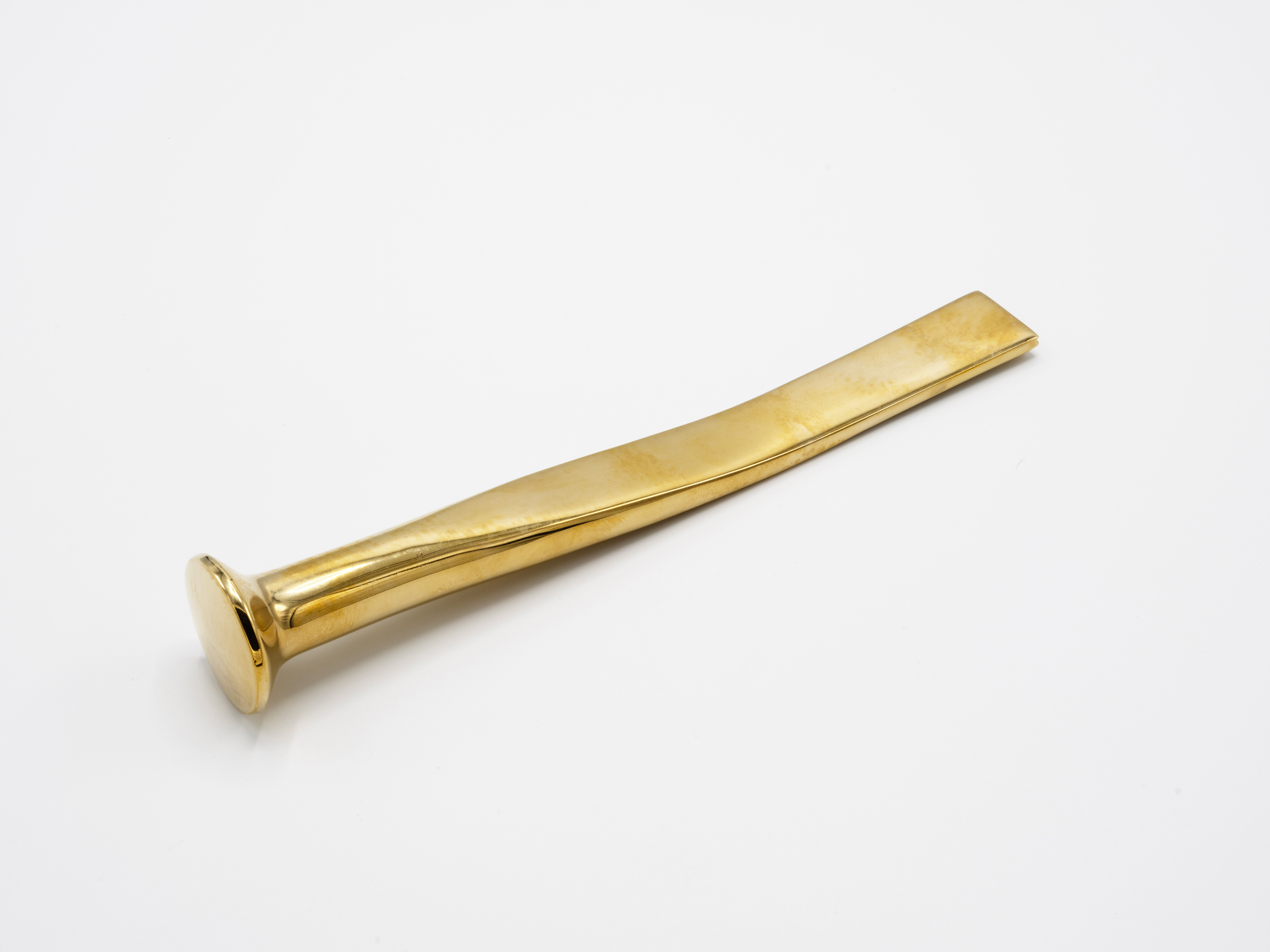

Bronze Caulking Iron #10


Caulking Iron #10 is a bronze bent crease iron with a single crease. Bent 4mm edge, 20mm long.

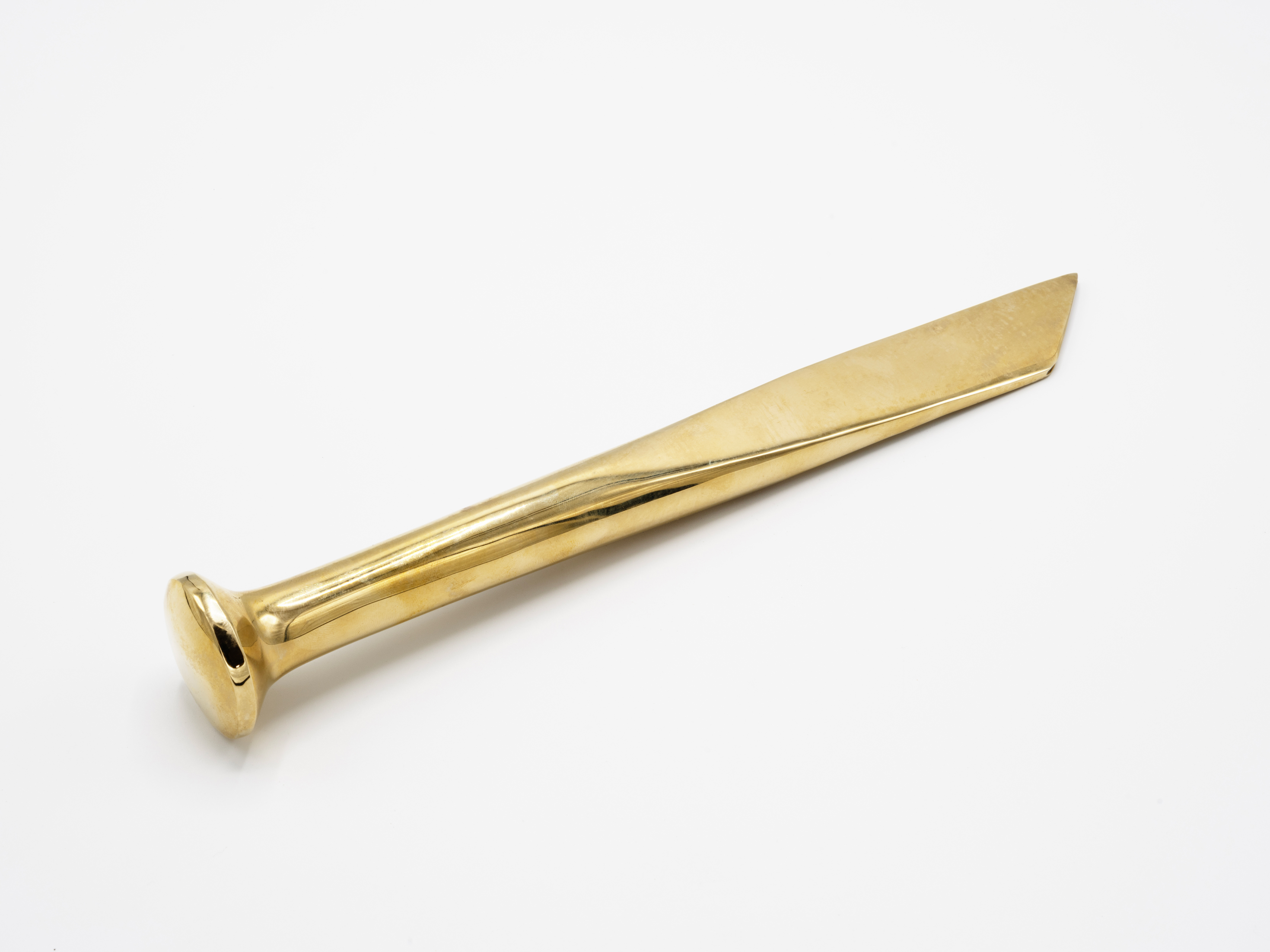

Bronze Caulking Iron #11


Caulking Iron #11 is a bronze single crease. 45° setting iron, 24mm long.




Fastenings



We stock a variety of traditional silicone bronze and copper fastenings used for boat building, home repairs or renovations.

Square Copper Boat Nails


Sold per 1 kg.

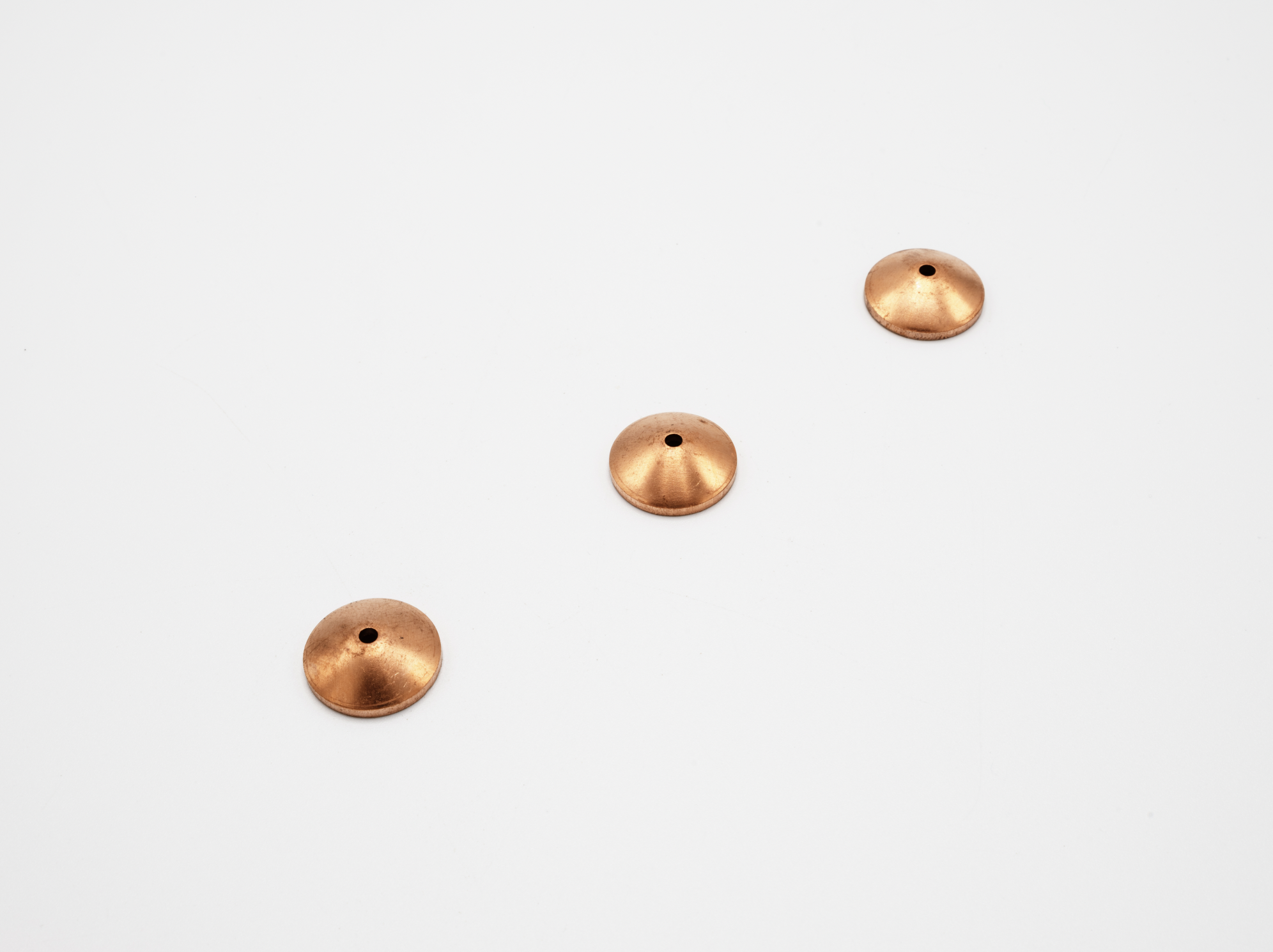

Copper Roves


Sold per 1 kg.

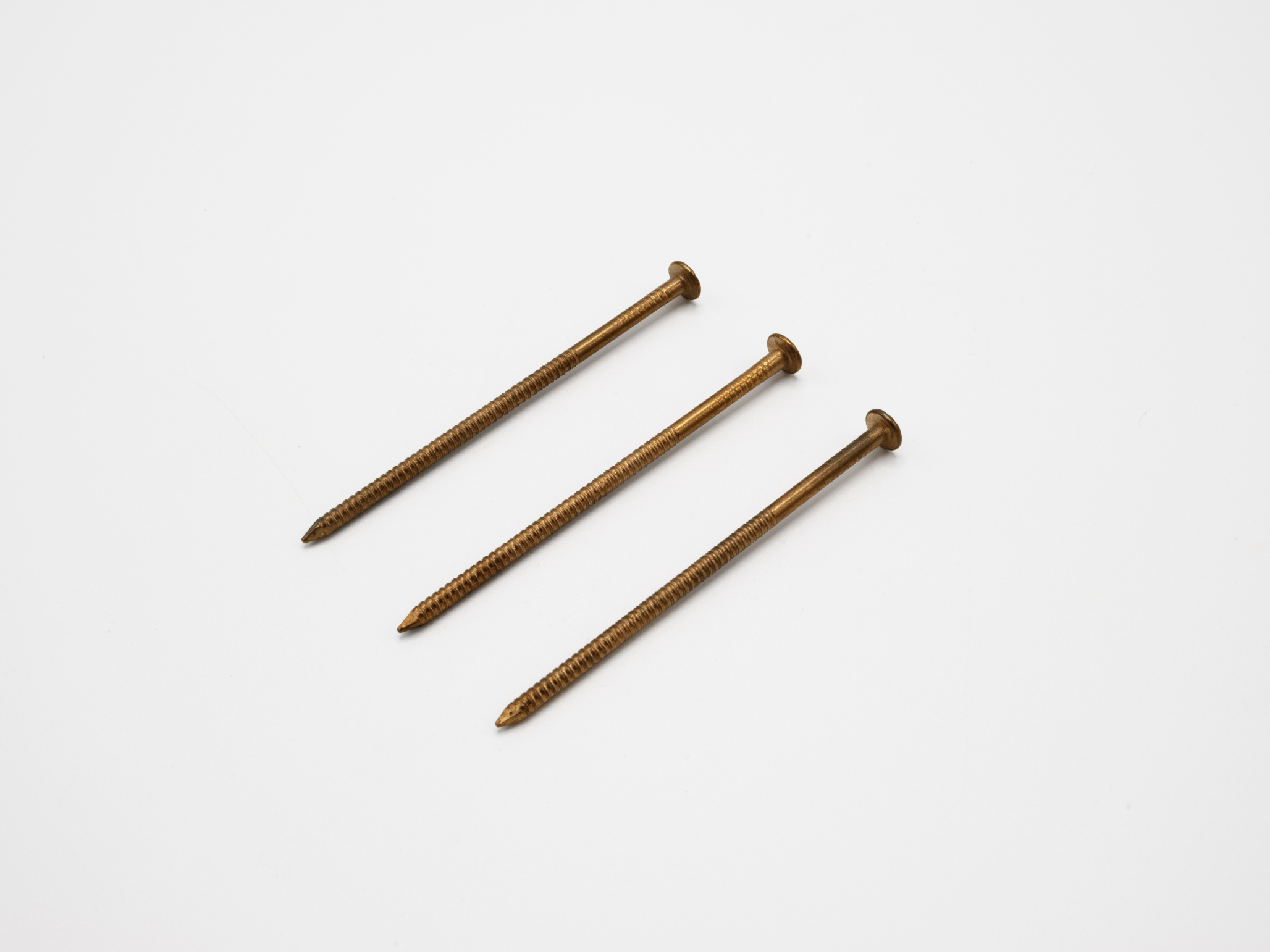

Silicon Bronze Boat Nails


Sold per 1 kg.

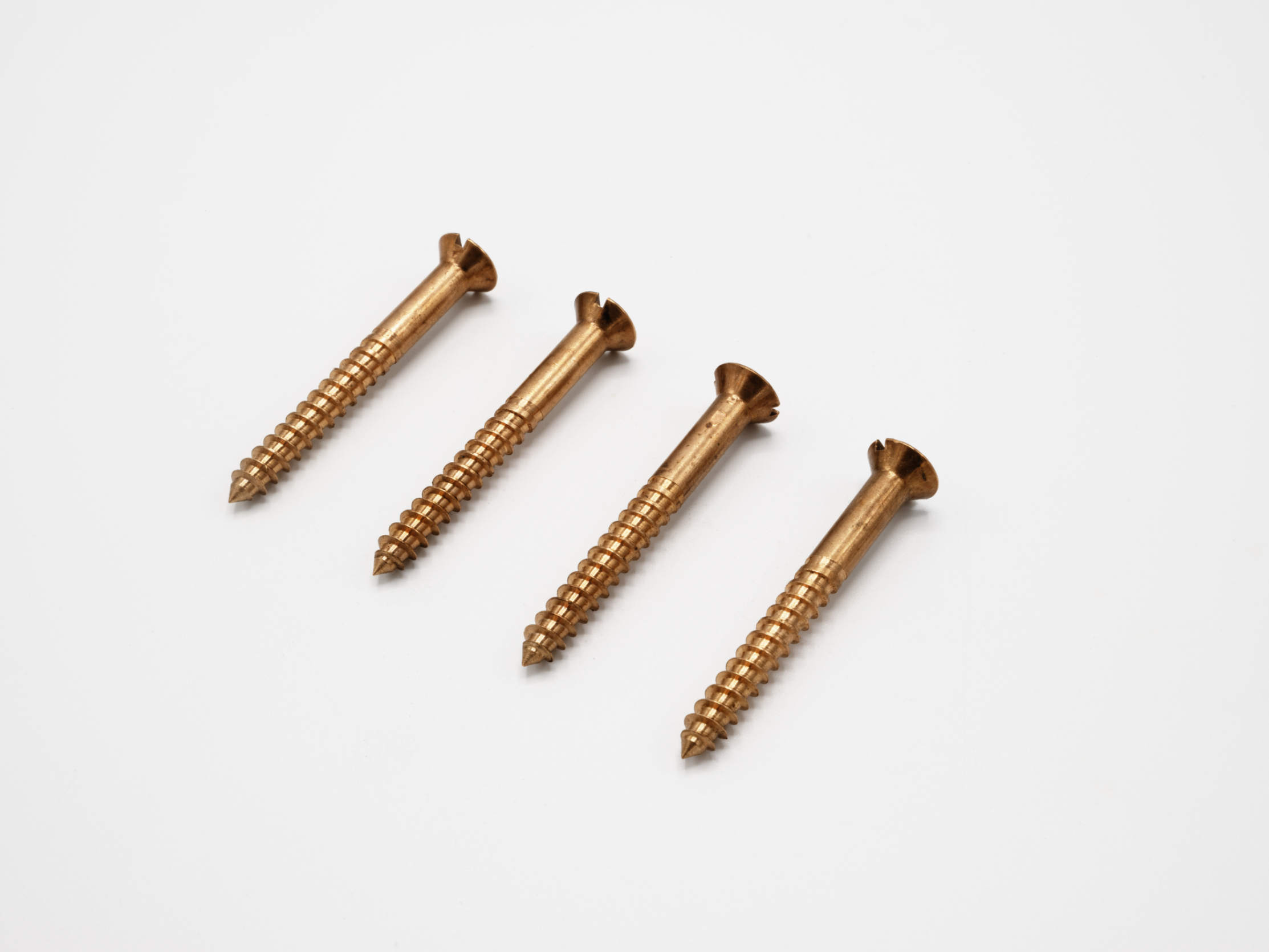

Silicone Bronze Wood Screws


Silicon bronze cut thread slot head countersunk woodscrews for boat building. Priced individually and sold individually. Please choose size and enter quantity at checkout.


Silicone Bronze UNC Hex Finished Nuts


Silicon bronze UNC hex finished nuts.  Priced individually and sold individually. Please choose size and enter quantity at checkout.

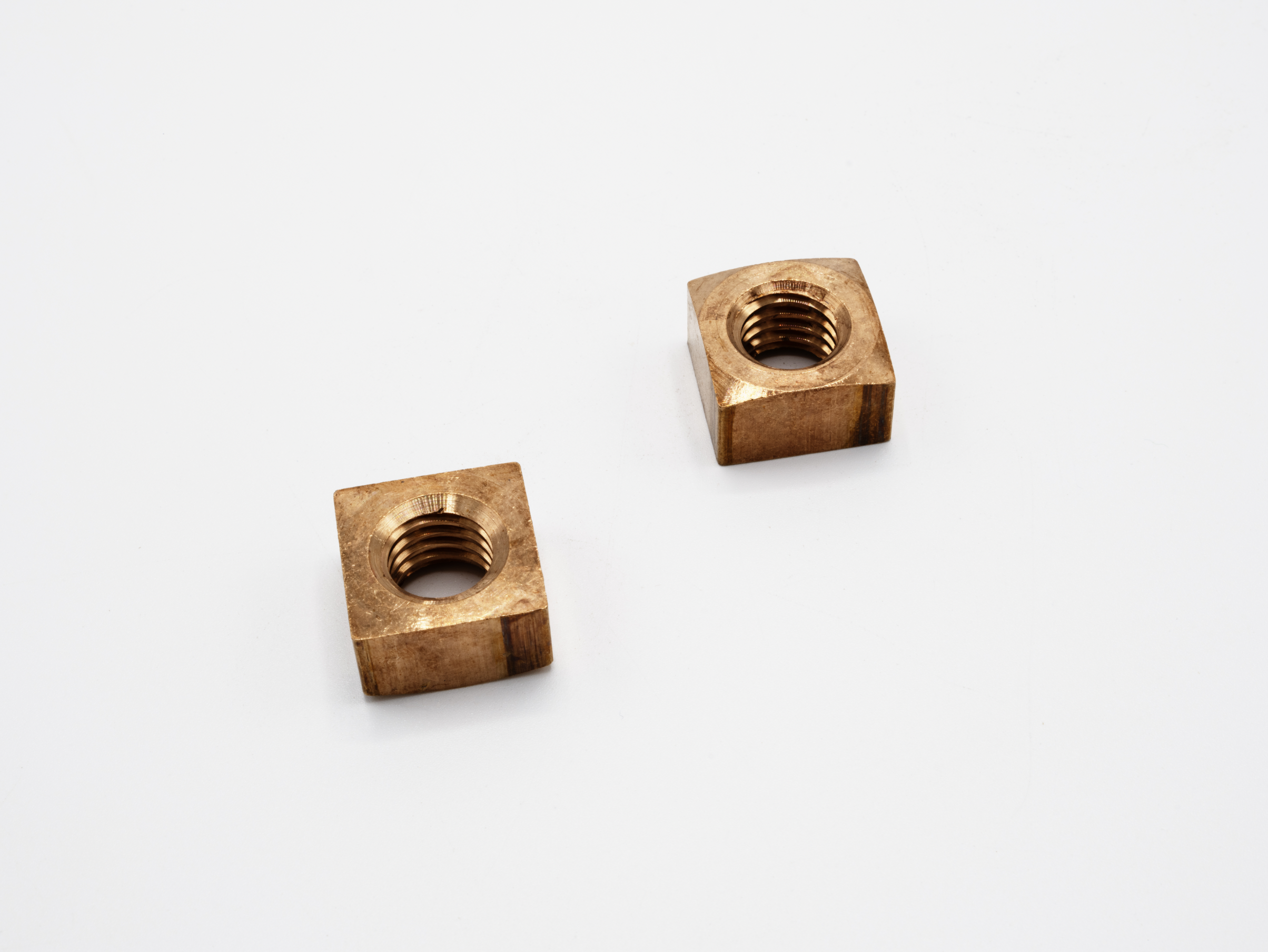

Silicone Bronze UNC Square Nuts


Silicon bronze UNC square nuts. Priced individually and sold individually. Please choose size and enter quantity at checkout.

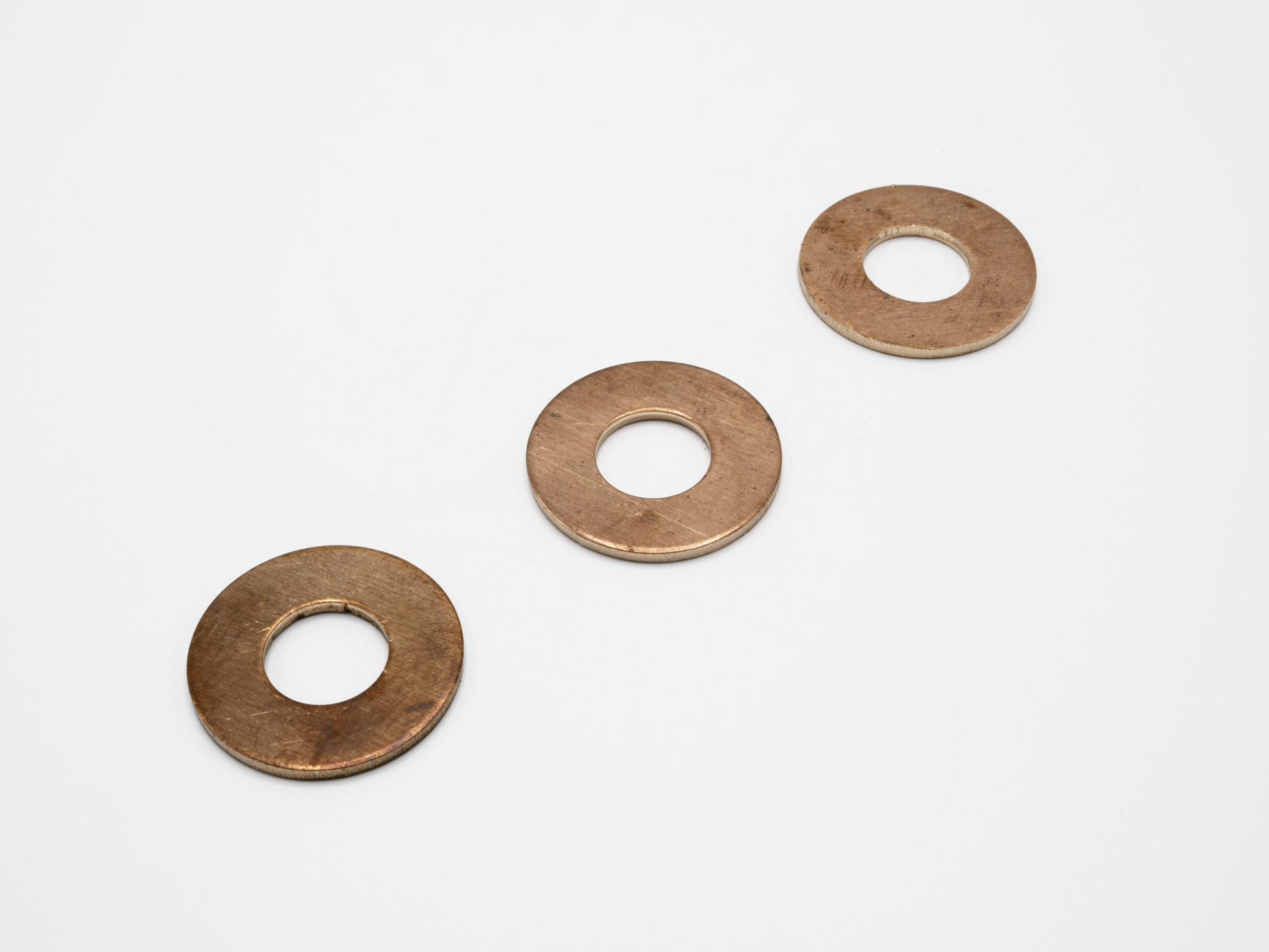

Silicone Bronze Washers


Silicon bronze washers. Priced individually and sold individually. Please choose size and enter quantity at checkout.




Carriage Bolts


Priced individually and sold individually. Please choose size and enter quantity at checkout.




Mark


Wooden Sailing Blocks



Traditional, hand-made blocks incorporating high-performance roll bearing sheaves.

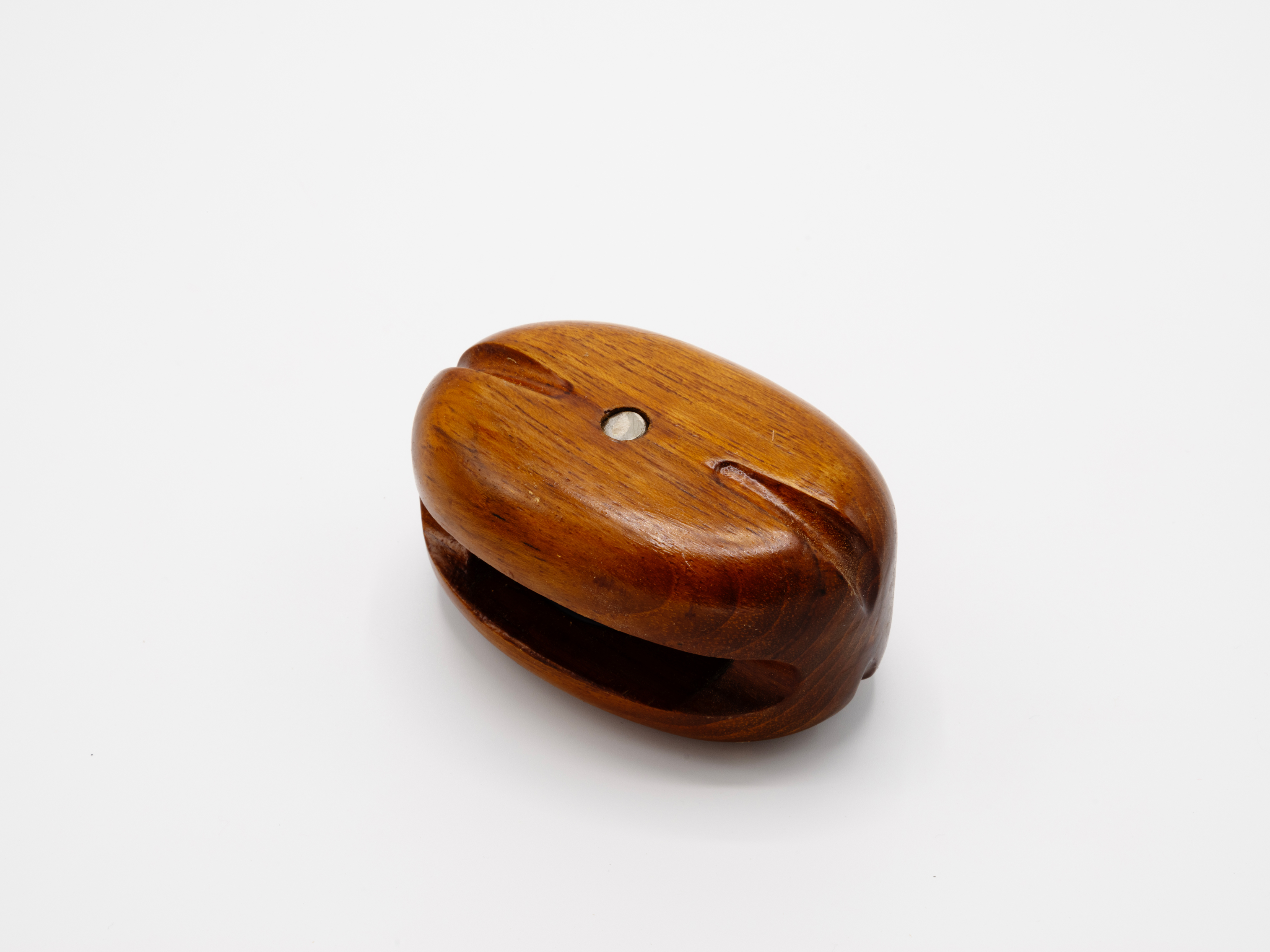

Single Rope Strop Block


X-Small
Sheave  diameter: 35mm
Rope max size: 6mm
Shell length: 65mm

Small
Sheave diameter: 38mm
Rope max size: 10mm
Shell length: 90mm

Medium
Sheave diameter: 49mm
Rope max size: 12mm
Shell length: 100mm

Large
Sheave diameter: 49mm
Rope max size: 14mm
Shell length: 142mm




Double Rope Strop Block


Small
Sheave diameter: 38mm
Rope max size: 10mm
Shell length: 90mm

Medium
Sheave diameter: 49mm
Rope max size: 12mm
Shell length: 100mm


Large
Sheave diameter: 49mm
Rope max size: 14mm
Shell length: 142mm

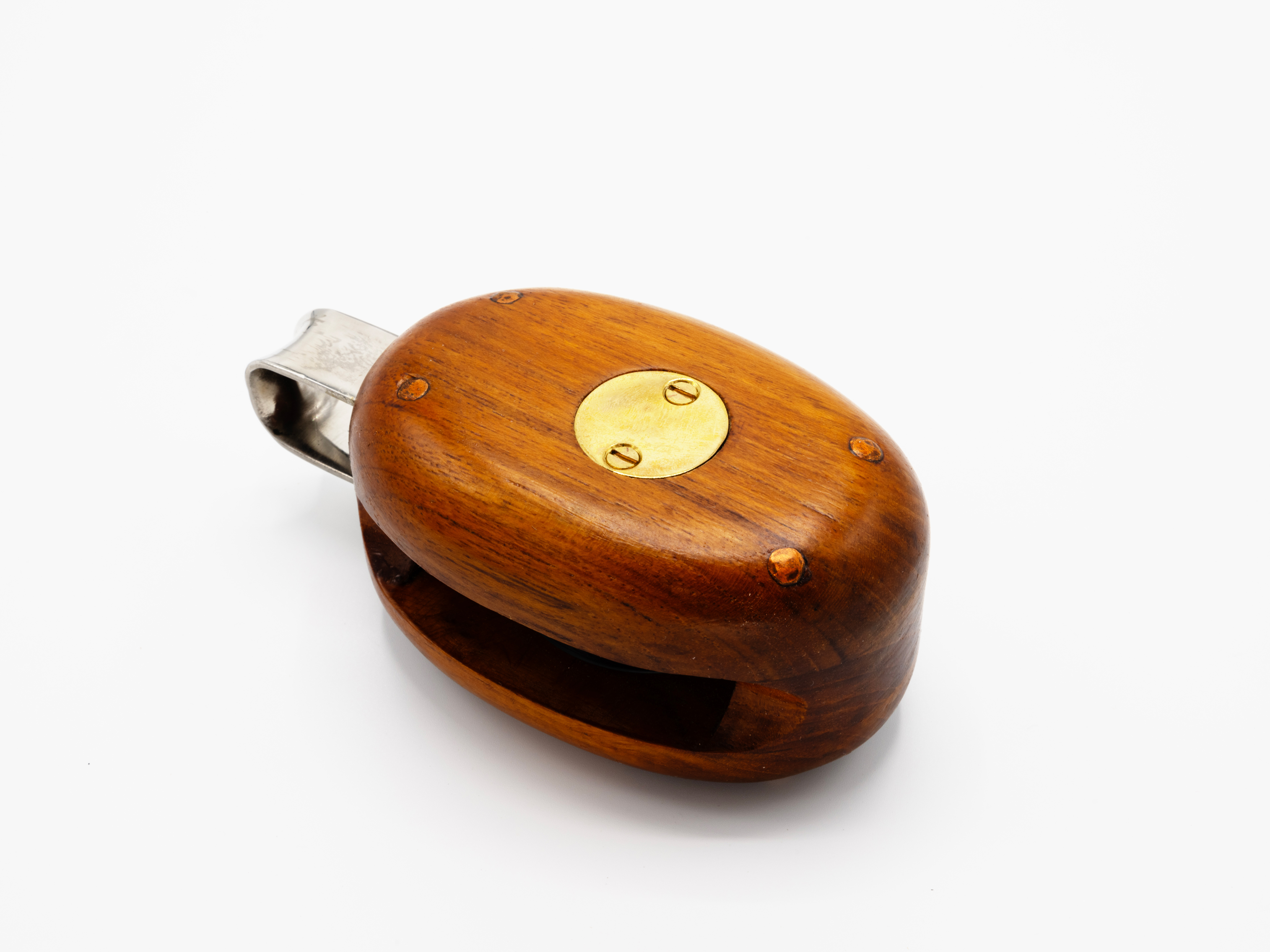

Single Binding Block


Small
Sheave diameter: 38mm
Rope max size: 10mm
Shell length: 90mm


Medium
heave Diameter: 49mm
Rope Max Size: 12mm
Shell Length: 100mm


Large
Sheave diameter: 49mm
Rope max size: 14mm
Shell length: 142mm



Single Binding Block with Becket


Small
Sheave Diameter: 38mm
Rope Max Size: 10mm
Shell Length: 90mm
Clevis Diameter: 8mm


Medium
Sheave Diameter: 49mm
Rope Max Size: 12mm
Shell Length: 100mm
Clevis Diameter: 8mm


Large
Sheave Diameter: 49mm
Rope Max Size: 14mm
Shell Length: 142mm
Clevis Diameter: 8mm




Double Binding Block


Small
Sheave Diameter: 38mm
Rope Max Size: 10mm
Shell Length: 90mm


Medium
Sheave Diameter: 49mm
Rope Max Size: 12mm
Shell Length: 100mm


Large
Sheave Diameter: 49mm
Rope Max Size: 14mm
Shell Length: 142mm

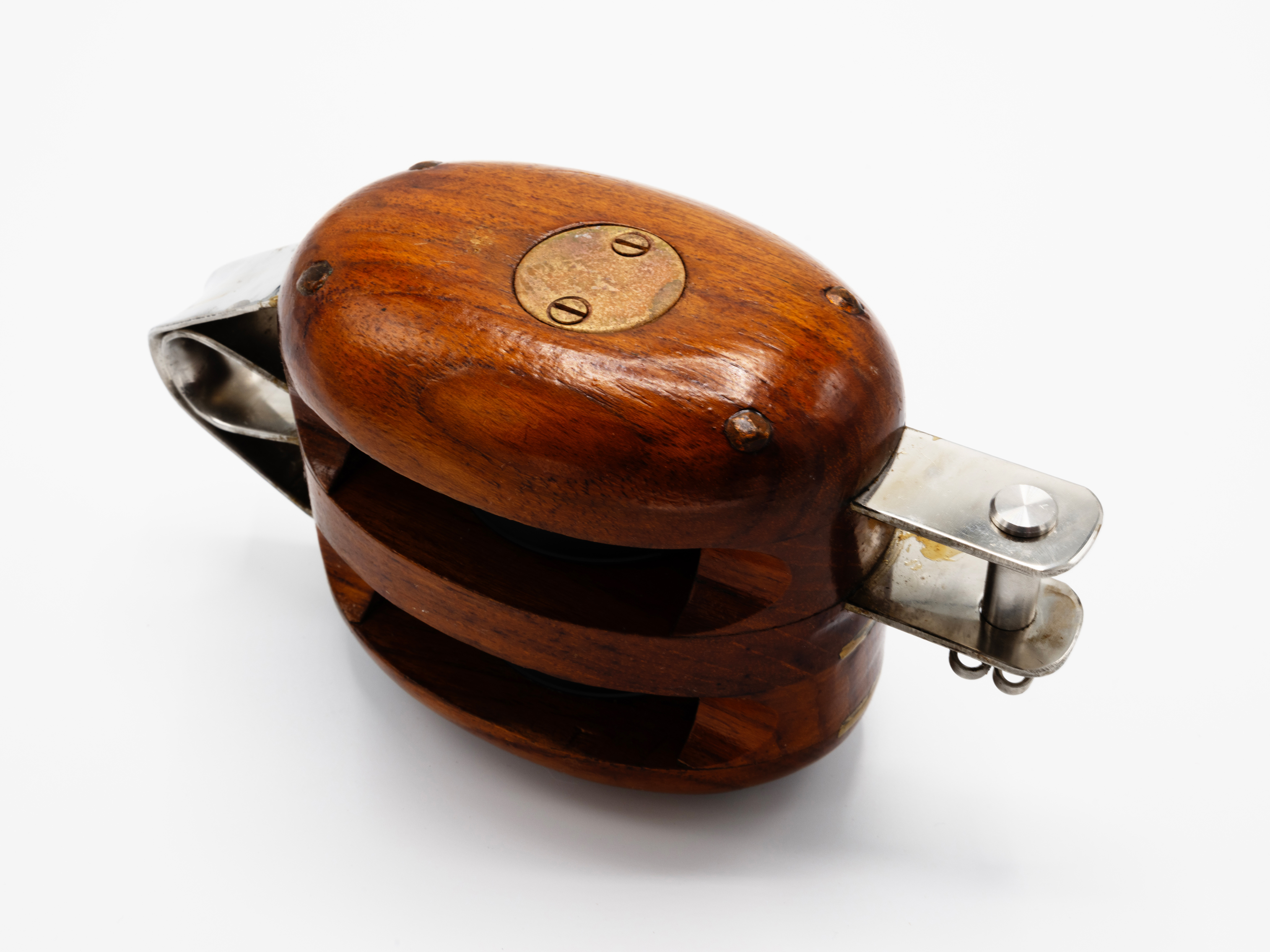

Double Binding Block with Becket


Small
Sheave Diameter: 38mm
Rope Max Size: 10mm
Shell Length: 90mm
Clevis Diameter: 8mm


Medium
Sheave Diameter: 49mm
Rope Max Size: 12mm
Shell Length: 100mm
Clevis Diameter: 8mm


Large
Sheave Diameter: 49mm
Rope Max Size: 14mm
Shell Length: 142mm
Clevis Diameter: 8mm



Triple Binding Block



Small
Sheave Diameter: 38mm
Rope Max Size: 10mm
Shell Length: 90mm

Medium
Sheave Diameter: 49mm
Rope Max Size: 12mm
Shell Length: 100mm


Large
Sheave Diameter: 49mm
Rope Max Size: 14mm
Shell Length: 142mm

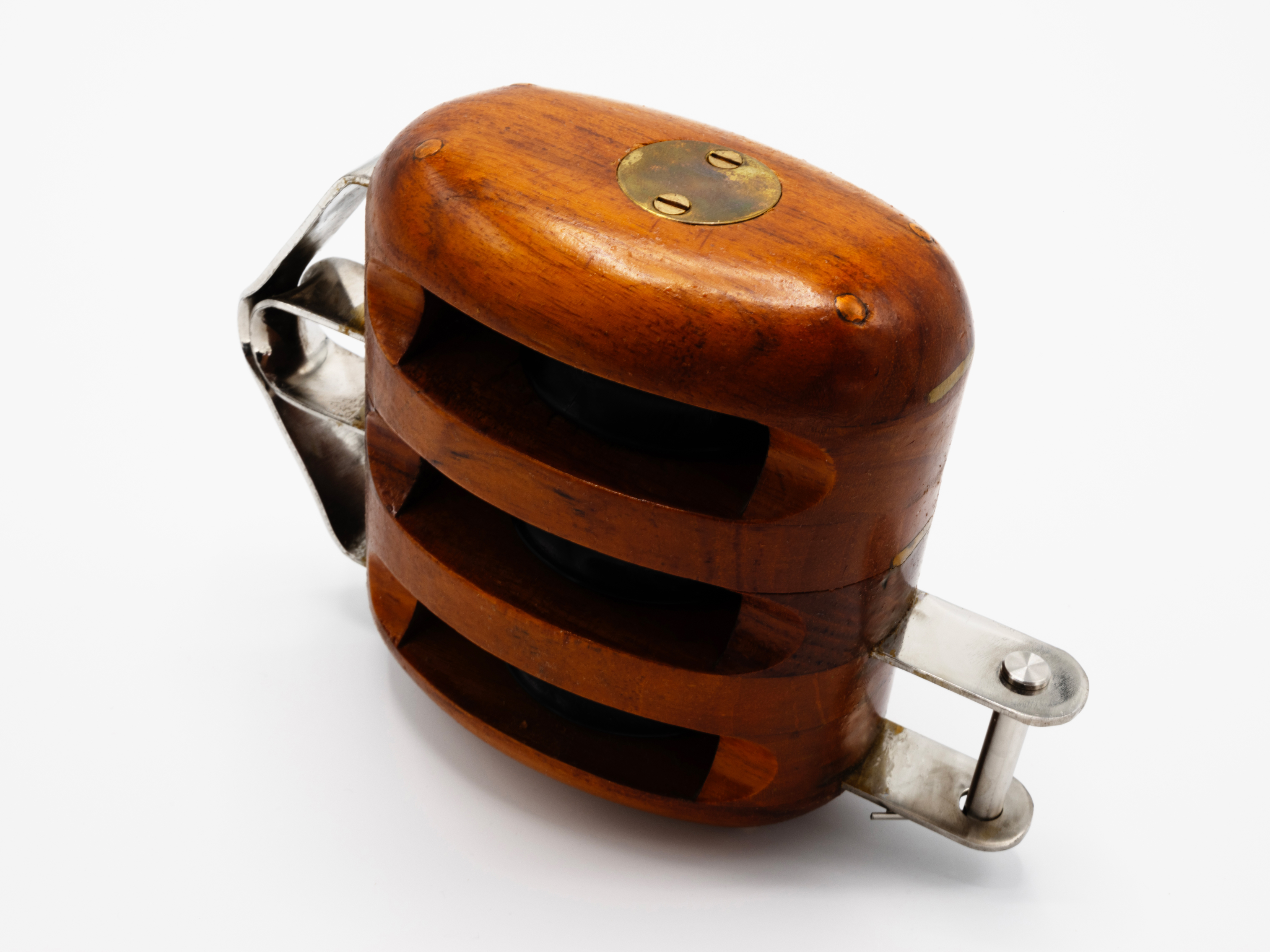

Triple Binding Block with Becket


Small
Sheave Diameter: 38mm
Rope Max Size: 10mm
Shell Length: 90mm
Clevis Diameter: 8mm

Medium
Sheave Diameter: 49mm
Rope Max Size: 12mm
Shell Length: 100mm
Clevis Diameter: 8mm

Large
Sheave Diameter: 49mm
Rope Max Size: 14mm
Shell Length: 142mm
Clevis Diameter: 8mm



Mark

Flags







Australian National Flag


Our flags are hand-sewn with fabric.
General rule for flag size is one yard per 10 foot.




Australian Red Ensign Flag


Our flags are hand-sewn with fabric.
General rule for flag size is one yard per 10 foot. The Red Ensign Australian flag dates back to 1954 and was traditionally used at sea, but can also be used by private citizens. Generally the Australian Red Ensign flag is not to be used on land.



Southern Peninsula Flag


This flag is printed, not hand-sewn.
General rule for flag size is one yard per 10 foot.








Mark



CONTACT
61 3 5984 4 333

SALES@WOODENBOATSHOP.COM.AU

129 HOTHAM ROAD, SORRENTO,  VICTORIA, AUSTRALIA
NEWSLETTER

SIGN-UP





CONTACT
61 3 5984 4 333

SALES@WOODENBOATSHOP.COM.AU

129 HOTHAM ROAD, SORRENTO,  VICTORIA, AUSTRALIA
NEWSLETTER

SIGN-UP
